盐城市远洋水泵有限公司（盐城市远洋水泵厂）生产的GCJ船用锅炉给水泵
一、GCJ船用锅炉给水泵用途：
1.5GCJ-5 型单吸多级分段式离心泵，供输送 110 ℃以下的清水及物理化学性质类似于水的液体，适用于锅炉给水、工厂和城市给水等。
1.5 ——吸水口直径（毫米）被 25 除得值并化整
G ——锅炉给水泵
C ——表示泵的种类
J ——机械密封式
5 ——缩小为 1/10 泵的比转数。即泵的比转数为 50
6 ——叶轮的数量
General Description
Type 1.5GCJ pump is centrigugal pumps of single suction and multi-stage segmental type which can be used to transport clean water and liquids with physical and chemical nature similar to water.The liquid temperature is not higher than 110 ℃ .It is suitable for water feeding to boilers,and water supplying to factories and cities.
Designation of 1.5GCJ — 5 × 6
1.5 —— Suction diameter(mm)divided by 25 , and then change the Value into integer
G —— Boiler feed pump
C —— Indicating type of te pump
J —— Mechanical seals
5 —— Specific speed divided by 10 (i.e.the specific speed of the pump is 50)
6 —— Number of impellers
GCJ船用锅炉给水泵性能表 PerformanceChart
GCJ船用锅炉给水泵结 构 图 Sectional View
| 1、轴套螺母 | 1 、 Sleeve nut | 2 、轴承盖 | 2 、 Bearing Cover |
| 3, 轴承 | 3 、 Bearing | 4 、轴承体 | 4 、 Bearing body |
| 5 、轴套 | 5 、 Sleeve | 6 、填料压盖 | 6 、 packing gland |
| 7 、机械密封 | 7 、 Sealing machine | 8 、进水段 | 8 、 Suction casing |
| 9 、密封环 | 9 、 Wearing ring | 10 、叶轮 | 10 、 Impeller |
| 11 、中段 |
11 、 Midsegment |
12 、回水管 | 12 、 Balance pipe |
| 13 、出水段 | 13 、 Discharge casing | 14 、平衡环 | 14 、 Balancing ring |
| 15 、平衡盘 | 15 、 Balancing disk | 16 、尾盖 | 16 、 End cover |
| 17 、轴套 | 17 、 Sleeve | 18 、拉紧螺栓 | 18 、 Tightening |
| 19 、轴 | 19 、 Pump shaft | 20 、圆螺母 | 20 、 Round nut |
GCJ船用锅炉给水泵结 构 说 明 Construction
GCJ船用锅炉给水泵的进出口方向均垂直向上，为根据所需扬程选用不同级数。
GCJ船用锅炉给水泵的定子部分由进水段、中段、出水段、尾盖和轴承体等零件组成。
GCJ船用锅炉给水泵的转子部分由轴、叶轮、轴套和平衡盘等零件组成，两端支撑在滚珠轴承上。
GCJ船用锅炉给水泵的进水段、中段、出水段静止结合面采用纸垫通过紧螺栓的拉紧来达到密封。为防止水进入轴承、在轴套间装有“○”形密封圈。泵体两端轴封采用机械密封。
GCJ船用锅炉给水泵两端轴承体有环形冷却室。当被输送液体大于 80 ℃时，应通入冷水，对轴承进行冷却。
轴承内的钙基黄油润滑脂可通过油杯注入。
从进水段方向看，GCJ船用锅炉给水泵为顺时针转动。
The directions of suction and discharge of the pump are all vertical and upward .with different stages seleced according to the needed head.
Stator of the pump is composed of suction casing .mid-segment.discharge casing .end cover and bearing body.
Rotor of the pump is composed of shaft.impellers.sleeves,and balancing disk,The two ends are supported by the ball-bearings
Paper gaskets are used on the contacting surfaces between the suction casing.mid-segment and discharge casing of the pump.They are sealed by tightening the bolts. ○ -rings are mounted on the interfaces between the sleeves to prevent water from entering the bearnjngs. ○ ilimmersed machine is sealing at the two ends the pump.
There are water cooling jackets around the bearing housings.when the temperature of liquid is higher than 80 ℃ ,Cooling water should be turned on to cool the bernings.
Calcium grease lubricant is firled into the bearing thrugh oil-cups.
Viewing from the direction of the suction casing .the pump is rotating clockwise

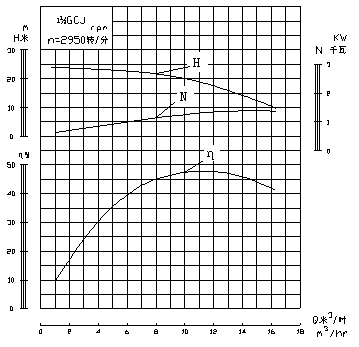

GCJ船用锅炉给水泵性 能 曲 线 Performance Curves
注：该图为单级扬程 Note curves are plotted with reference to single-stage pumping head
GCJ船用锅炉给水泵安装尺寸图 Overall Dimensions
GCJ船用锅炉给水泵安安装尺寸表 Installation Dimensions
